Home > Products > LED Tunnel Light > High Transparent PET Diffusion Film for LED Light

High Transparent PET Diffusion Film for LED Light

High Transparent PET Diffusion Film for LED Light

    Payment Type: L/C,T/T,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1000 Meter
    Delivery Time: 18 Days
    Packaging: Standard&according to customer's required
    Productivity: 1000000
    Brand: KEYUACE
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 100000
    Certificate: RoHS
    Port: SZ

Basic Info

Model No.: LED

Product Description

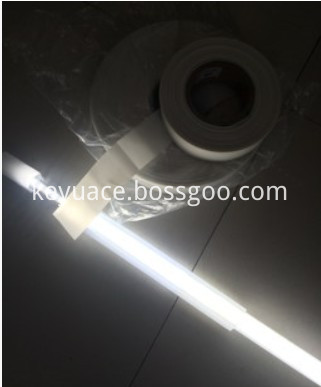

High Transparent PET Diffusion Film for Led Light

Product Description

Explosion-proof lam LED light photodiffusion heat shrink tube is made of PET materials,superior transparency, good heat dissipation effect, insulation, protect the glass not to break.

KEYUACE diffusion films, LED & Fluorescent Lamp Protection Sleeves are widely used for backlight of lap top, LCD TVs, mobile phones and other LCD/LED display.

1, Explosion proof lamp tube shrinkable film, White LED-PET heat-shrink tube can homogenize the dot light to area light.

2, LED light diffusion film ,The uniform theory of light diffusion heat shrink sleeve is that the light ray will generate many refraction, reflection and scattering when the light go through the different refraction rate medium and get the effect of optical diffusion.

3, Fluorescent Lamps Protective Sleeves, Light transmittance can be up to 85-93%, haze 95-99%, customizable.

4, FEP Shrink Tube and PET Fluoresent Tube, RoHS compliant, no mercury, uvioresistant,save energy and low carbon.

Application for LED light

T5 T8 T10 LED Fluorescent Diffusion Protective Sleeve

Operation Temp:

1, Min. Shrink temp.:60

2, Final shrink temp.: 125

3, Work temp. : -55~125


Increase length 5mm at both ends of the glass lamps when cutting the tube, set the glass lamps which have been scrubbed by alcohol and dried on to the cutting heat shrink tube.

Put them into the 75-85℃constant temperature thermal cycling tunnel furnace to shrink.After 1-2 minutes, check if the tube is shrinkable.

If not, let them shrink sequentially. If the temperature is a little high, the heat shrink tube will generate crystal and black patches. Trim them with art knife after they are cold already, go to next step to install if no problem.


Product Number.

Inner diameter




Lay flat width (mm)

Wall thickness


Horizontal shrink ratio


Vertical Shrink ratio



















55 ± 0.3





PET Film for LED Light

PET Film for LED LightPET Film for LED LightHigh Transparent PET Diffusion Film
